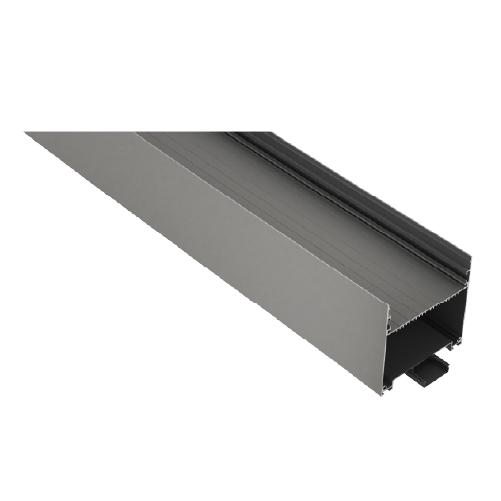

QSG-9090B
Product Features
High quality anpdised aluminium wall profle;
With integrated cable duct;
Ideally suited for indirect lighting without an existing cove on site;
Light emission either upwards, downwards or sideways (e.g. at edges) possible; RAL;
powder coating on request
Applicable Scenarios
High quality anpdised aluminium wall profle;
With integrated cable duct;
Ideally suited for indirect lighting without an existing cove on site;
Light emission either upwards, downwards or sideways (e.g. at edges) possible; RAL;
powder coating on request
Dimensional Drawing
Product Composition
| Product Name | Material | RAL (Customized other colors available) | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|
| QSG-9090B ALU Black |
|
6063-T5 |
RAL 9005
|
Insert Mounting |
1000mm
2000mm
2500mm
3000mm
|
| QSG-9090B ALU White |
|
6063-T5 |
RAL 9016
|
Insert Mounting |
1000mm
2000mm
2500mm
3000mm
|
| QSG-9090B ALU Silver |
|
6063-T5 |
RAL 9006
|
Insert Mounting |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Transmittance | Fire Rating | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|---|
| QSG-9090B Black |
|
PC | 35%-30% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-9090B Opal |
|
PC | 65%-60% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-9090B Diffuse |
|
PC | 65%-60% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-9090B Clear |
|
PC | 95-90% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Color(Customized other colors available) | Installation Method | |
|---|---|---|---|---|
| QSG-9090B End Cap |
|
PC |
Black
White
Silver
|
Push In |
